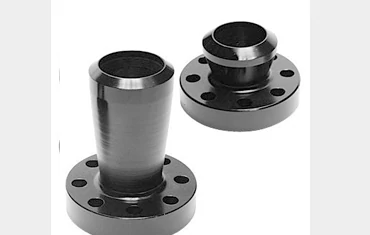

Weldo flange or Nipo Flanges is the combination of Welded Neck Flange and Weldolet. Both these components are manufactured in one piece and are not welded. These flanges are primarily in branch connects which are designed more minutely for excellent smooth follow of liquid or gas in petro or chemical industry. You can also request a customised requirement for you type of industry. The standards includes for Stainless Steel Weldo / Nipo Flanges are ASME SA 182 F, 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H. For Carbon Steel Weldo / Nipo Flanges are as follows ASTM / ASME A 105, ASTM / ASME A 350 LF 2 and for Alloy Steel Weld / Nipo Flange are ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91. Alloy Steel Weldo/ Nipo Flanges are as ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91. Again for different types of industry there are types of other requirement which are customised according to the size and materials along with standards and dimensions or likewise with their grades
Weldo / Nipo Flanges today is widely distributed in many countries for its high quality use in various industries such as petroleum, oil, gas and liquid. UAE, Saudi Arabia, Kuwait, Qatar, Egypt, Turkey, Oman, Africa, Malaysia & many countries in USA & Europe are the main market where our products are exported. Being an ISO 9001, 14001, OHSAS 18001 with PED 97/23/EC approved Supplier & Exporter of Industrial raw materials. Other stainless steel alloy products like Pipe Elbow, Pipe Tee, Pipe Cross, Lap Joints, Butt-Weld Pipes and many more are also available with other types of pipe fittings and flanges available.
Get more information
Being certified & Award winner for Supplier & Exporter of industrial stainless Steel piping materials we have the best pipes and tubes solutions with offer pricing. All of our products are tested on different parameters for high product value in the market. Our business connections are beneficial to more than 600 reputed organisations in more than 30+ countries from last 25 years with 95% of customer retention. Today we are leading the market with best Weldo / Nipo Flanges around the world.
Weldo / Nipo Flanges Specification
| Product Type | ASME 16.5 Weldo Flanges & ASME 16.5 Nipo Flanges |
|---|---|
| Size | ½” (15 NB) to 48″ (1200NB) |
| Stainless Steel Weldo / Nipo Flanges | ASTM / ASME SA 182 F, 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H. |
| Carbon Steel Weldo / NipoFlanges | ASTM / ASME A 105, ASTM / ASME A 350 LF 2. |
| Alloy Steel Weldo / NipoFlanges | ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91. |
| Duplex Steel Weldo / NipoFlanges | ASTM / ASME SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61. |
| High Nickel Alloy Weldo / Nipo Flanges | ASTM / ASME SB 564 / 160 / 472, Nickel 200 – UNS N02200, Nickel 201 – UNS N02201, Monel 400 – UNS N04400, Monel K500 – UNS N05500, Inconel K600 – UNS N06600, Inconel 601 – UNS N06601, Inconel 625 – UNS N06625, Inconel 800 – UNS N08800, Inconel 800H – UNS N08810, Inconel 825 – UNS N08825, Hastelloy C276 – UNS N10276, Alloy 20 – UNS N08020 |
| Copper Alloy Weldo / Nipo Flanges | ASTM / ASME SB 61 UNS NO. C 92200 & ASTM / ASME SB 62 UNS NO. C 83600. ASTM / ASME SB 151 UNS NO.70600, 71500, C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30), ASTM / ASME SB 152 UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200. |
ASME/ ANSI B16.5 Weldo / Nipoing Pipe Flanges Manufacturing Materials :
| Dimensions | Base Material | Pressure Rating |
|---|---|---|
| ASME B16.5 | ASTM A182 (Forgings) ASTM A240 (Plate) | 150#. 300#. 400#. 600#. 900#. 1500#. 2500#. |
| API 605 | ASTM A182 (Forgings) ASTM A240 (Plate) | 150#. 300#. 400#. 600#. 900#. 1500#. 2500#. |
| ASME B16.47series A & B | ASTM A182 (Forgings) ASTM A240 (Plate) | 150#. 300#. 400#. 600#. 900#. 1500#. 2500#. |
| EN1092-1 | ASTM A182 (Forgings) | PN2.5. PN6. PN10. PN16. PN25. PN40. PN63. PN100. PN160. PN250. PN320. PN400. |
| BS4504 | BS970 (Bar)ASTM A240 (Plate) ASTM A182 (Forgings) | PN2.5. PN6. PN10. PN16. PN25. PN40. PN63. PN100. PN160. |
| BS10 | BS970 (Bar)ASTM A240 (Plate) ASTM A182 (Forgings) |
Typical Stainless Steel 18/8 Grade Designations:
|
ASTM
|
BS
|
DIN
|
EURONORM
|
|---|---|---|---|
|
304
|
304S15
|
X5 Cr Ni 18 10
|
1.4301
|
|
304L
|
304S11
|
X2 Cr Ni 18 9
|
1.4307
|
|
316
|
316S31
|
X5 Cr Ni Mo 17 12 2
|
1.4401
|
|
316L
|
316S11
|
X2 Cr Ni Mo 17 13 2
|
1.4404
|
|
321
|
321S31
|
X6 Cr Ni 18 10
|
1.4541
|
|
316Ti
|
320S31
|
X6 Cr Ni Mo Ti 17 12 2
|
1.4571
|
|
SMO
|
254SMO
|
X1 Cr Ni Mo Cu N 20 18 7
|
1.4547
|
We Stock All Different Types Of Weldo / Nipo Flanges at best price
|
|
