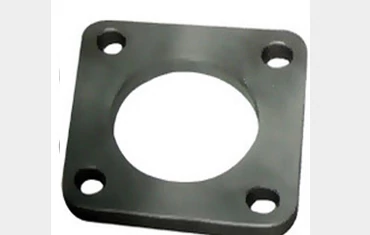

Square Flanges is widely manufactured and supplied to countries like UAE, Saudi Arabia, Kuwait, Qatar, Egypt, Turkey, Oman, Africa, Malaysia & many countries in USA & Europe. Since 1992 Pipe Fitting Supplier are providing this effective product service with national and internal standards of procedures for the fulfillment of spreading high quality stainless steel products in various industries like gas, oil, chemical, petroleum and other liquid forms. Our services also enable us to provide any customized forms of these flanges products. The square flanges are made accordance with JIS B2291/JIS F7806 standards which are used between the pipes to pipes components connections. These are mostly used in hydraulic systems where the passages of fluids are made of two different kinds of materials which are pure steel and stainless steel. These are also commonly used and designed for square flanges, SHAB Square Flanges and SSAB Square Flanges. The pressure rates for square flange are available in 210 kg/cm², 280 kg/cm², and 350 kg/cm². It is with a single available socket weld connection that requires the pipe to have plain ends for excellent pipe solution.
There are types of standards under each material products which is as follows - Stainless Steel ASTM / ASME SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H. For Duplex Steel the standards are ASTM / ASME SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61. The nickel alloy mostly used for gas, oil, liquid, chemical or other industry, it’s standards include ASTM / ASME SB 564 UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276) ASTM / ASME SB 160 UNS 2201 (NICKEL 201) ASTM / ASME SB 472 UNS 8020 (ALLOY 20 / 20 CB 3). For Copper Alloy ASTM / ASME SB 61 UNS NO. C 92200 & ASTM / ASME SB 62 UNS NO. C 83600. ASTM / ASME SB 151 UNS NO. 70600, 71500, C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30) ASTM / ASME SB 152 UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200. For Carbon Alloy includes ASTM / ASME A 105, ASTM / ASME A 350 LF 2 and Alloy Steel it is ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91.
Get more information
Square Flanges by Pipe Fitting Suppliers is exported to many countries like UAE, Saudi Arabia, Kuwait, Qatar, Egypt, Turkey, Oman, Africa, Malaysia & many countries in USA & Europe. Being the best manufacturers, exporters, suppliers and distributors in Mumbai, India, we are an ISO 9001, 14001, OHSAS 18001 with PED 97/23/EC approved Supplier & Exporter of Industrial raw materials. Other stainless steel alloy products like Pipe Elbow, Pipe Tee, Pipe Cross, Lap Joints, Butt-Weld Pipes and many more are also available with other types of forged flanges available. All our product ranges are tested on different parameter for excellent product value in the market. Our business networks are beneficial to more than 600 reputed organizations in more than 30+ countries from last 25 years with 95% of customer retention. Today we are leading the market with best and top Square Flanges around the world.
Specification - Square Flanges
| Product type | Square Flange |
|---|---|
| Size | ½” (15 NB) to 48″ (1200NB) |
| Stainless Steel Square Flanges | ASTM A 182, A 240, F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L |
| Alloy Steel Square Flanges | ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91 |
| Carbon Steel Square Flanges | ASTM / ASME A 105, ASTM / ASME A 350 LF 2 |
| Duplex Steel Square Flanges | ASTM / ASME SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61. |
| Copper Alloy Square Flanges | ASTM / ASME SB 61 UNS NO. C 92200 & ASTM / ASME SB 62 UNS NO. C 83600. ASTM / ASME SB 151 UNS NO. 70600, 71500, C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30), ASTM / ASME SB 152 UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200. |
| High Nickel Alloy Square Flanges | ASTM / ASME SB 564 UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), ASTM / ASME SB 160 UNS 2201 (NICKEL 201 ), ASTM / ASME SB 472 UNS 8020 (ALLOY 20 / 20 CB 3) |
| Pressure Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150#, ASA 300# DIN ND 6,10,16,25,40 Etc. |
| Standard | ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642,DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 |
Square Flanges Key Features:
- Can be attached to the pipe without welding (sometimes an additional seal weld is used as well)
- Ideal for higher pressure and temperature applications for small pipe sizes
- Not recommended for larger loads, especially when subjected to higher torque
NOTE: This flange is referred to as either threaded or screwed. It is used to connect other threaded components in low pressure, non-critical applications. No welding is required.
ASME/ ANSI B16.5 Square Flanges Manufacturing Materials :
| Dimensions | Base Material | Pressure Rating |
|---|---|---|
| ASME B16.5 | ASTM A182 (Forgings) ASTM A240 (Plate) | 150#. 300#. 400#. 600#. 900#. 1500#. 2500#. |
| API 605 | ASTM A182 (Forgings) ASTM A240 (Plate) | 150#. 300#. 400#. 600#. 900#. 1500#. 2500#. |
| ASME B16.47series A & B | ASTM A182 (Forgings) ASTM A240 (Plate) | 150#. 300#. 400#. 600#. 900#. 1500#. 2500#. |
| EN1092-1 | ASTM A182 (Forgings) | PN2.5. PN6. PN10. PN16. PN25. PN40. PN63. PN100. PN160. PN250. PN320. PN400. |
| BS4504 | BS970 (Bar)ASTM A240 (Plate) ASTM A182 (Forgings) | PN2.5. PN6. PN10. PN16. PN25. PN40. PN63. PN100. PN160. |
| BS10 | BS970 (Bar)ASTM A240 (Plate) ASTM A182 (Forgings) |
Typical Stainless Steel 18/8 Grade Designations:
|
ASTM
|
BS
|
DIN
|
EURONORM
|
|---|---|---|---|
|
304
|
304S15
|
X5 Cr Ni 18 10
|
1.4301
|
|
304L
|
304S11
|
X2 Cr Ni 18 9
|
1.4307
|
|
316
|
316S31
|
X5 Cr Ni Mo 17 12 2
|
1.4401
|
|
316L
|
316S11
|
X2 Cr Ni Mo 17 13 2
|
1.4404
|
|
321
|
321S31
|
X6 Cr Ni 18 10
|
1.4541
|
|
316Ti
|
320S31
|
X6 Cr Ni Mo Ti 17 12 2
|
1.4571
|
|
SMO
|
254SMO
|
X1 Cr Ni Mo Cu N 20 18 7
|
1.4547
|
ANSI B16.5 Square Flanges Dimensions & Weight Chart:
There are three types of Square Flanges under this standard:
- SHAB – Used with hexagon hex bolts, larger flange body size (Figure 1)
- SSAB – Used with socket cap screw, smaller flange body size than SHAB (Figure2)
- LSA – Oring side only, L shaped internal flow (Figure 3)
|
SHA Square Flanges |
SHB Square Flanges
|
|
|
|
SSA Square Flanges
|
SSB Square Flanges
|
|
|
1) ANSI B16.5, ASME B16.47 FLANGE
- Size range: 1/2″ to 24″ DN15 to DN600
- Design: welding neck, slip on, blind, socket welding, threaded, lap-joint
- Pressure: 150#, 300#, 600#,900#,1500#, 2500#
- Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160. SCHXXS
- Material: stainless steel 304/304L, 316/316L
- Coating: Bright
- Package: seaworthy plywooden case, wooden pallet
2) EN1092-1 FLANGE
- Size range: DN15 to DN600
- Design: : plate flange, loose flange, blind flange, welding necking
- type12 slip on flange, type 13 threaded flange
- Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100
- Material: carbon steel C22.8, S235, S235JR, P235GH, stainless steel: 304/304L, 316/316L
- Coating: Bright
- Package: sea worthy plywooden case, wooden pallet
3) DIN FLANGE
- Size range: DN15 to DN600
- Design: slip on Flange: DIN2573,2576,2502,2503, 2543,2545
- Welding neck Flange DIN2631, 2632,2633,2634,2635
- Blind flange DIN 2527 PN6, PN10, PN16, PN25, PN40
- Threaded Flange DIN2565,2566,2567,2567
- Loose Flange DIN 2641,2642,2656,2673
- Material: stainless steel 1.4301, 1.4404
- Coating: rust-proof oil, transparent paint, cold and hot galvanize
- Package: sea worthy plywooden case, wooden pallet
4) GOST FLANGE
- Size range: DN15 to DN 2000
- Design : plate falnge 12820-80, welding neck flange 12821-80
- Pressure: PN6, PN10, PN16, PN25, PN40
- Material: stainless steel 304/304L, 316/316L, Carbon Steel
- Coating: rust-proof oil, cold and hot galvanize
- Package: sea worthy plywooden case, wooden pallet
5) JIS FALNGE
- Size ragne : 15A to 2000A
- Design: SOP, BIND, SOH,
- Puressure: 1K, 2K, 5K, 10K, 16K, 20K, 30K, 40K, 210k, 280k, 350k
- Material: stainless steel SUS304, SUS316, Carbon Steel
- Coating : bright
- Packing: sea worthy plywooden case, wooden pallet
