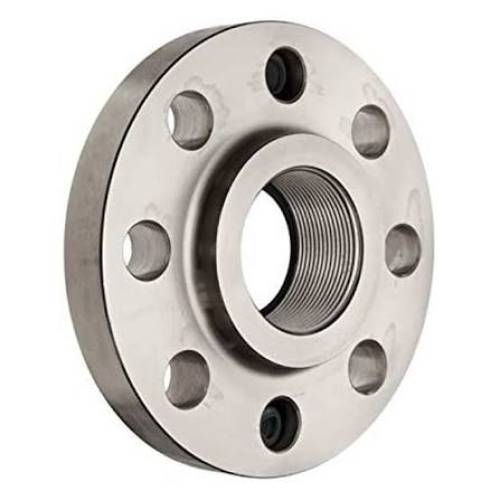

Threaded Flanges by Pipes Fittings Supplier is India’s largest supplier, distributor, wholesaler and manufacturers of stainless steel products. Threaded pipe flanges are similar to slip-on pipe flanges except the bore of threaded pipe flanges that has tapered threads. These special types of threaded flanges are extremely helpful for high pressure heat and the key feature of this threaded flange are that it can be assembled without welding. Threaded flanges are mostly used in petro and chemical industry. Threaded flanges are also typically provided with a raised face, flat face or even a RTJ facing. The standard height of any Threaded Flanged is 1/6” under 400# it can also have a raised face height 1/4
With also provide high quality of flange consisting of tapered interior threaded design which is by connecting two exteriors to have a tight and leak proof seal. So these together create a seal weld where the pipe and flange meet together. Most of the time these flanges are used on the pipes containing very smaller diameter, these are actually very effective for complete piping solution. Some of the materials such as stainless steel are hard to create or make a successful weld and therefore these types of flanges are used to create a perfect seal over smaller or customized pipes. These are also called screwed flanges, threaded flanges, stainless steel screwed/ threaded flanges, SS Screwed or threaded flange. The size win which these are available can also be customized with (15 NB) to 48" (1200NB). The classes of these flanges are as 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6, 10, 16, 25 and 40. ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 are the standards name for these Threaded Flanges. The productions of these flanges include many types of flanges Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ). Coating/Surface Treatment treat can be applied easily with Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized. The grades for Stainless Steel Screwed/Threaded Flanges are named as ASTM A182, A240 F 304, 304L, 304H, 316, 316Ti, 316H, 316L, 316LN, 309S, 309H, 310S, 310H,317, 317L, 321, 321H, 347, 347H, 201, 202, 904, for Carbon Steel Screwed/Threaded Flange the grades are ASTM A 105, ASTM A 350 LF 2, ASTM A694 F52 - F60 - F65 - F70. Other type of flanges which also have certain effective high quality grades include Alloy Steel Screwed/Threaded Flanges and their grades can be compared with each other with ASTM A182 F1, F5, F9, F11, F22 and F91.
Nickel Alloy Screwed/Threaded Flanges also have grades which are particularly used in any industries like petro-chemical, oil, gas, power generation, bulk liquid transportation, Chemicals and other pharmaceutical. It also is used in many of paper manufacturing company. We fully have fulfilled the legal procedure for national and international standards of exporting and manufacturing products. Standing as No.1 we today we started our excellence journey in the year 1992. We are an ISO 9001, 14001, OHSAS 18001 certification with PED 97/23/EC approved Supplier & Exporter of Industrial raw materials. Forged Flanges today are excellently manufactured by Pipe Fittings Supplier with many multinational companies in countries like UAE, Saudi Arabia, Kuwait, Qatar, Egypt, Turkey, Oman, Africa, Malaysia & many countries in USA & Europe. Other stainless steel alloy products like Pipe Elbow, Pipe Tee, Pipe Cross, Lap Joints, Butt-Weld Pipes and many more are also available with other types of forged flanges available.
All products ranges are tested on different parameter scale to bring the high quality and value output. Being certified & Award winner supplier & exporter of industrial stainless steel piping materials we have the best pipes and tubes solutions with best pricing. Our business connections are beneficial to more than 600 reputed organisations in more than 30+ countries from last 25 years with 95% of customer retention. We are the best among the top flanges manufacturers, suppliers and distributer in Mumbai, India.
Threaded Flanges Specification
| Product Type | Thread Flanges, ASME 16.5 Threaded Flanges, Screwed Flanges |
|---|---|
| Size | ½” (15 NB) to 48″ (1200NB) |
| Class | 150#, 300#,400 #,600#,900#, 1500# & 2500 #. |
| Stainless Steel Threaded Flanges | ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L |
| Carbon Steel Threaded Flanges | ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F70 |
| Alloy Steel Threaded Flanges | ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91 |
| Duplex Steel Threaded Flanges | ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61 |
| Standard | ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 ,JIS,DIN,BS4504,SABS1123,EN1092-1, UNI,AS2129,GOST-12820DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673B.S : BS4504 , BS4504, BS1560, BS10 |
| Flanges Forms | Weld Neck Flanges – WNRF, Socket Weld Flanges – SWRF, Slip On Raise Face – SORF, Blind Raise, Face- BLRF, Spectacle Blind, Ring Joint, Large Dia Flanges, Orifice Flanges, Girth Flange, Threaded Flanges, Screwed (Threaded) Flanges, Long Weld Neck Flanges, Reducing. |
Standards
- ASTM A182 – ASME SA182 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’
- ASME B16.5- Pipe Flanges and Flanged Fittings’
- MSS SP-6 – Standard Finishes for Contact Faces of Pipe Flanges and Connecting End Flanges of Valves and Fittings’
ASME/ ANSI B16.5 Threaded Pipe Flanges Manufacturing Materials :
| Dimensions | Base Material | Pressure Rating |
|---|---|---|
| ASME B16.5 | ASTM A182 (Forgings) ASTM A240 (Plate) | 150#. 300#. 400#. 600#. 900#. 1500#. 2500#. |
| API 605 | ASTM A182 (Forgings) ASTM A240 (Plate) | 150#. 300#. 400#. 600#. 900#. 1500#. 2500#. |
| ASME B16.47series A & B | ASTM A182 (Forgings) ASTM A240 (Plate) | 150#. 300#. 400#. 600#. 900#. 1500#. 2500#. |
| EN1092-1 | ASTM A182 (Forgings) | PN2.5. PN6. PN10. PN16. PN25. PN40. PN63. PN100. PN160. PN250. PN320. PN400. |
| BS4504 | BS970 (Bar)ASTM A240 (Plate) ASTM A182 (Forgings) | PN2.5. PN6. PN10. PN16. PN25. PN40. PN63. PN100. PN160. |
| BS10 | BS970 (Bar)ASTM A240 (Plate) ASTM A182 (Forgings) |
Dimensions of Threaded Flanges – Class 150 Lbs
| Drilling | ||||||||
|---|---|---|---|---|---|---|---|---|
| Nominal Bore Threaded Flanges | Dia.(D) | Thick.(E) | Dia.(F) | Dia.(B) | Height1(H) | Nbr | Holes | Dia.(C) |
|
1/2″ |
90 |
9.6 |
35.05 |
30 |
14 |
4 |
15.87 |
60.3 |
|
3/4″ |
100 |
11.2 |
42.92 |
38 |
14 |
4 |
15.87 |
69.9 |
|
1″ |
110 |
12.7 |
50.80 |
49 |
16 |
4 |
15.87 |
79.4 |
|
1 1/4″ |
115 |
14.3 |
63.50 |
59 |
19 |
4 |
15.87 |
88.9 |
|
1 1/2″ |
125 |
15.9 |
73.15 |
65 |
21 |
4 |
15.87 |
98.4 |
|
2″ |
150 |
17.5 |
91.94 |
78 |
24 |
4 |
19.05 |
120.7 |
|
2 1/2″ |
180 |
20.7 |
104.65 |
90 |
27 |
4 |
19.05 |
139.7 |
|
3″ |
190 |
22.3 |
127.00 |
108 |
29 |
4 |
19.05 |
152.4 |
|
3 1/2″ |
215 |
22.3 |
139.70 |
122 |
30 |
8 |
19.05 |
177.8 |
|
4″ |
230 |
22.3 |
157.22 |
135 |
32 |
8 |
19.05 |
190.5 |
|
5″ |
255 |
22.3 |
185.67 |
164 |
35 |
8 |
22.22 |
215.9 |
|
6″ |
280 |
23.9 |
215.90 |
192 |
38 |
8 |
22.22 |
241.3 |
|
8″ |
345 |
27.0 |
269.75 |
246 |
43 |
8 |
22.22 |
298.5 |
|
10″ |
405 |
28.6 |
323.85 |
305 |
48 |
12 |
25.40 |
362.0 |
|
12″ |
485 |
30.2 |
381.00 |
365 |
54 |
12 |
25.40 |
431.8 |
|
14″ |
535 |
33.4 |
412.75 |
400 |
56 |
12 |
28.57 |
476.3 |
|
16″ |
595 |
35.0 |
469.90 |
457 |
62 |
16 |
28.57 |
539.8 |
|
18″ |
635 |
38.1 |
533.40 |
505 |
67 |
16 |
31.75 |
577.9 |
|
20″ |
700 |
41.3 |
584.20 |
559 |
71 |
20 |
31.75 |
635.0 |
|
24″ |
815 |
46.1 |
692.15 |
663 |
81 |
20 |
34.92 |
749.3 |
The dimensions are in millimeters
Dimensions of Threaded Flanges – Class 300 Lbs
| Drilling | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Nominal Bore Threaded Flanges | Dia.(D) | Thick.(E) | Dia.(F) | Dia.(B) | Dia.(A) | Height1(H) | Nbr | Holes | Dia.(C) |
|
1/2″ |
95 |
12.7 |
35.05 |
38 |
23.6 |
21 |
4 |
15.87 |
66.7 |
|
3/4″ |
115 |
14.3 |
42.92 |
48 |
29.0 |
24 |
4 |
19.05 |
82.6 |
|
1″ |
125 |
15.9 |
50.80 |
54 |
35.8 |
25 |
4 |
19.05 |
88.9 |
|
1 1/4″ |
135 |
17.5 |
63.50 |
64 |
44.4 |
25 |
4 |
19.05 |
98.4 |
|
1 1/2″ |
155 |
19.1 |
73.15 |
70 |
50.3 |
29 |
8 |
22.22 |
114.3 |
|
2″ |
165 |
20.7 |
91.94 |
84 |
63.5 |
32 |
8 |
19.05 |
127.0 |
|
2 1/2″ |
190 |
23.9 |
104.65 |
100 |
76.2 |
37 |
8 |
22.22 |
149.2 |
|
3″ |
210 |
27.0 |
127.00 |
117 |
92.2 |
41 |
8 |
22.22 |
168.3 |
|
3 1/2″ |
230 |
28.6 |
139.70 |
133 |
104.9 |
43 |
8 |
22.22 |
184.2 |
|
4″ |
255 |
30.2 |
157.22 |
146 |
117.6 |
46 |
8 |
22.22 |
200.0 |
|
5″ |
280 |
33.4 |
185.67 |
178 |
144.4 |
49 |
8 |
22.22 |
235.0 |
|
6″ |
320 |
35.0 |
215.90 |
206 |
171.4 |
51 |
12 |
22.22 |
269.9 |
|
8″ |
380 |
39.7 |
269.75 |
260 |
222.2 |
60 |
12 |
25.40 |
330.2 |
|
10″ |
445 |
46.1 |
323.85 |
321 |
276.2 |
65 |
16 |
28.57 |
387.4 |
|
12″ |
520 |
49.3 |
381.00 |
375 |
328.6 |
71 |
16 |
31.75 |
450.8 |
|
14″ |
585 |
52.4 |
412.75 |
425 |
360.4 |
75 |
20 |
31.75 |
514.4 |
|
16″ |
650 |
55.6 |
469.90 |
483 |
411.2 |
81 |
20 |
34.92 |
571.5 |
|
18″ |
710 |
58.8 |
533.40 |
533 |
462.0 |
87 |
24 |
34.92 |
628.6 |
|
20″ |
775 |
62.0 |
584.20 |
587 |
512.8 |
94 |
24 |
34.92 |
685.8 |
|
24″ |
915 |
68.3 |
692.15 |
702 |
614.4 |
105 |
24 |
41.27 |
812.8 |
The dimensions are in millimeters
Dimensions of Threaded Flanges – Class 600 Lbs
| Drilling | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Nominal Bore Threaded Flanges | Dia.(D) | Thick.(E) | Dia.(F) | Dia.(B) | Dia.(A) | Height1(H) | Nbr | Holes | Dia.(C) |
|
1/2″ |
95 |
14.3 |
35.05 |
38 |
23.6 |
22 |
4 |
15.87 |
66.7 |
|
3/4″ |
115 |
15.9 |
42.92 |
48 |
29.0 |
25 |
4 |
19.05 |
82.6 |
|
1″ |
125 |
17.5 |
50.80 |
54 |
35.8 |
27 |
4 |
19.05 |
88.9 |
|
1 1/4″ |
135 |
20.7 |
63.50 |
64 |
44.4 |
29 |
4 |
19.05 |
98.4 |
|
1 1/2″ |
155 |
22.3 |
73.15 |
70 |
50.6 |
32 |
4 |
22.22 |
114.3 |
|
2″ |
165 |
25.4 |
91.94 |
84 |
63.5 |
37 |
8 |
19.05 |
127.0 |
|
2 1/2″ |
190 |
28.6 |
104.65 |
100 |
76.2 |
41 |
8 |
22.22 |
149.2 |
|
3″ |
210 |
31.8 |
127.00 |
117 |
92.2 |
46 |
8 |
22.22 |
168.3 |
|
3 1/2″ |
230 |
35.0 |
139.70 |
133 |
104.9 |
49 |
8 |
25.40 |
184.2 |
|
4″ |
275 |
38.1 |
157.22 |
152 |
117.6 |
54 |
8 |
25.40 |
215.9 |
|
5″ |
330 |
44.5 |
185.67 |
189 |
144.4 |
60 |
8 |
28.57 |
266.7 |
|
6″ |
355 |
47.7 |
215.90 |
222 |
171.4 |
67 |
12 |
31.75 |
292.1 |
|
8″ |
420 |
55.6 |
269.75 |
273 |
222.2 |
76 |
12 |
31.75 |
349.2 |
|
10″ |
510 |
63.5 |
323.85 |
343 |
276.2 |
86 |
16 |
34.92 |
431.8 |
|
12″ |
560 |
66.7 |
381.00 |
400 |
328.6 |
92 |
20 |
34.92 |
489.0 |
|
14″ |
605 |
69.9 |
412.75 |
432 |
360.4 |
94 |
20 |
38.10 |
527.0 |
|
16″ |
685 |
76.2 |
469.90 |
495 |
411.2 |
106 |
20 |
41.27 |
603.2 |
|
18″ |
745 |
82.6 |
533.40 |
546 |
462.0 |
117 |
20 |
44.45 |
654.0 |
|
20″ |
815 |
88.9 |
584.20 |
610 |
512.8 |
127 |
24 |
44.45 |
723.9 |
|
24″ |
940 |
101.6 |
692.15 |
718 |
614.4 |
140 |
24 |
47.62 |
838.2 |
Technical Information – Specifications, Dimensions Threaded Flanges
- ANSI ASME B16.5 Class 150 Threaded Flanges Dimensions
- ANSI ASME B16.5 Class 300 Threaded Flanges Dimensions
- ANSI ASME B16.5 Class 400 Threaded Flanges Dimensions
- ANSI ASME B16.5 Class 600 Threaded Flanges Dimensions
- ANSI ASME B16.5 Class 900 Threaded Flanges Dimensions
- ANSI ASME B16.5 Class 1500 Threaded Flanges Dimensions
The dimensions are in millimeters
We Stock All Different Types Of Threaded Flanges at Best Price
|
|
